Scout 80 Main Wiring Harness (Dash/Engine/Headlight)1961-63 For Generator or Alternator 861766R92

Description:

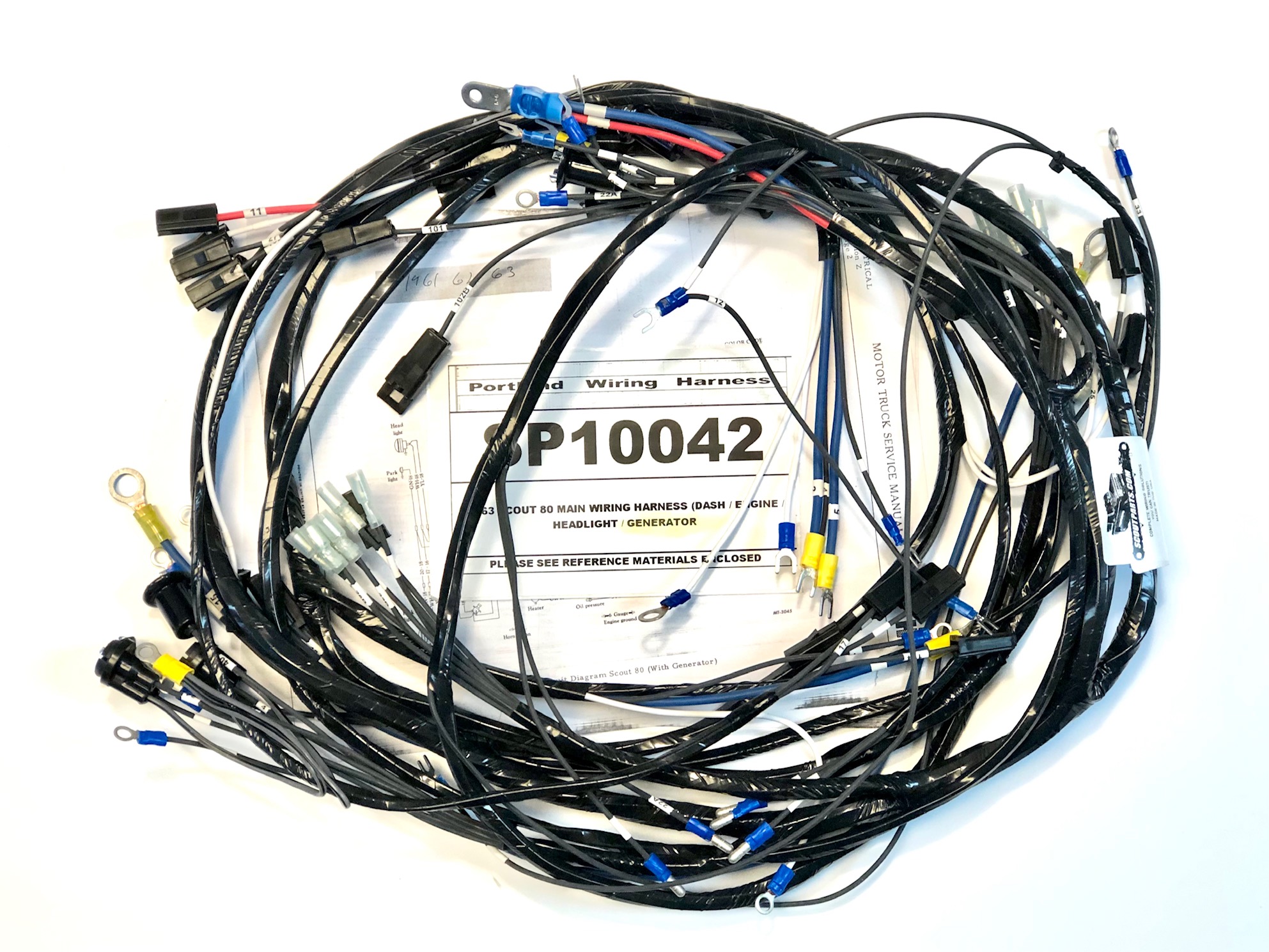

This is a new front dash and engine with headlight wiring harness to fit 1961-1963 Scout 80 with a generator. This is the set up for use with the stock generator, but we can also modify it to work with an alternator.
*Please tell us whether you have a generator or alternator. The basic harness comes in a adhesive free tape very close to original factory covering.

A faithful reproduction of the original complete harness that the IH factory made. Harness in the second photo has been over braided.
Over braiding is a service that we offer, it is an additional cost. It protects the harness long term and was a protection method used in the 1960's.

Please call us if you need help identifying your Scout or order a line setting ticket (#13536) to be sure. All connectors included. Made in the USA.


DISCONNECT BATTERY before doing any work. PLEASE READ BEFORE YOU ORDER: At least 40 years have passed since your machine was built. Many people have worked on and changed things from factory configuration. It is customer's responsibility to make sure that harness and contact arrangement is correct for the application. Often, the previous old harnesses may have damaged components in your electrical system, Pacific Supply Group accepts no liability for any device that you attach this new harness to.

HEADLIGHT HARNESSES THAT ATTACH ALSO AVAILABLE: SEE SP18902

Fits: 1961 Scout 80, 1962 Scout 80, 1963 Scout 80
